VCB and SF6 Breaker Panel (Indoor & Outdoor)

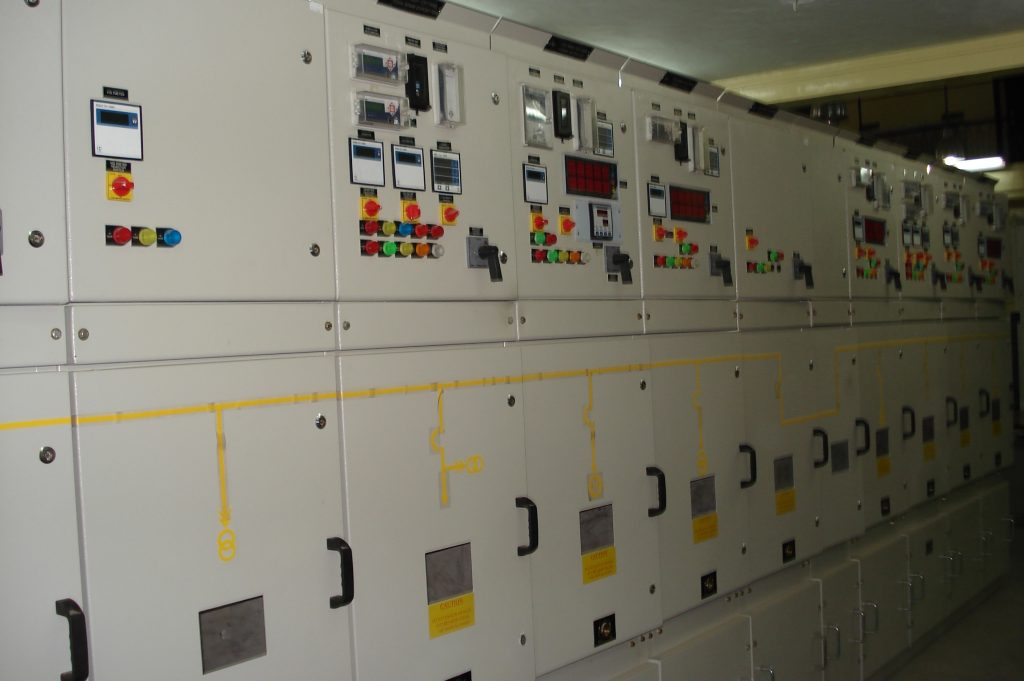

11kV 25kA VCB
INDOOR 11kV 25kA/3sec 1250A VCB SafegearSF6(11.25.1250) indoor panel. Fault level of 25kA for 3 sec. Ampere rating starting from 630A to 2500A. COPPER/ ALUMINIUM Bus bars are HT PVC sleeved and IP
protection of IP5X as per IEC 62271-200. STC also available in 20kA, 26.3kA and 31.5kA/3sec Draw out
type VCB with all standard protection and metering with CT PT. Note it is a double bodied panel as the
indoor panel is assembeld in the KIOSK. Much safer and stronger

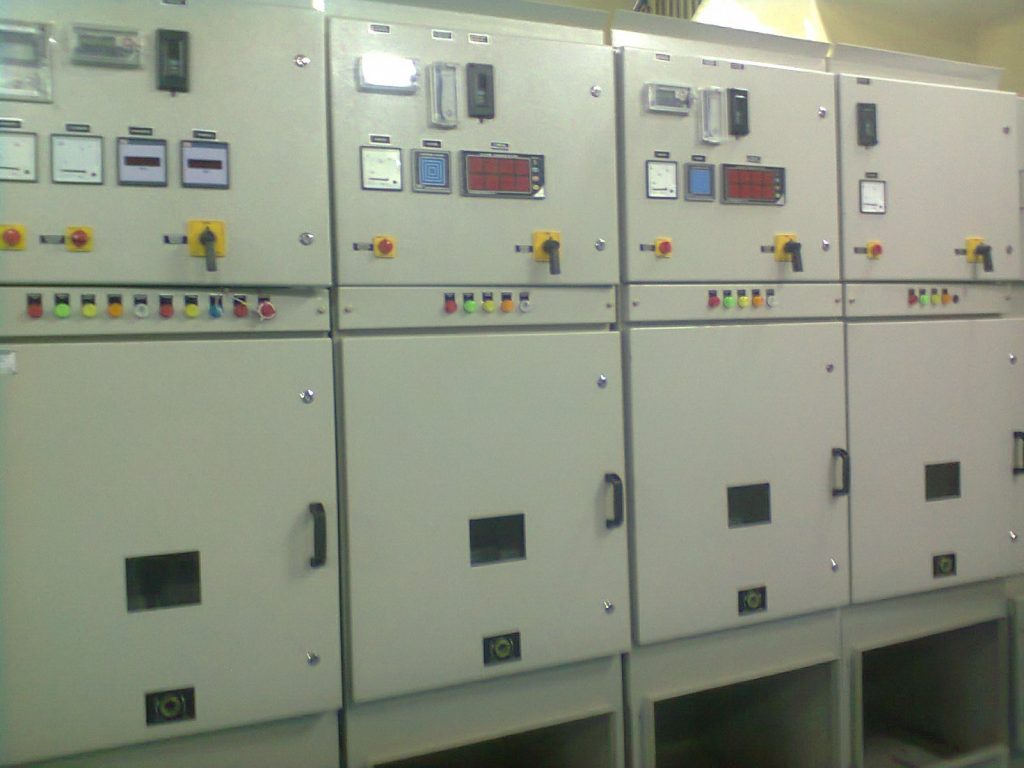

11kV 40kA VCB
INDOOR 11kV 40kA/3sec 1250A VCB SafegearSF6(11.40.1250) indoor panel. Fault level of 40kA for 3 sec.
Ampere rating starting from 630A to 2500A. COPPER/ ALUMINIUM Bus bars are HT PVC sleeved and IP
protection of IP5X as per IEC 62271-200. Draw out type VCB with all standard protection and metering
with CT PT. Note it is a double bodied panel as the indoor panel is assembeld in the KIOSK. Much safer
and stronger

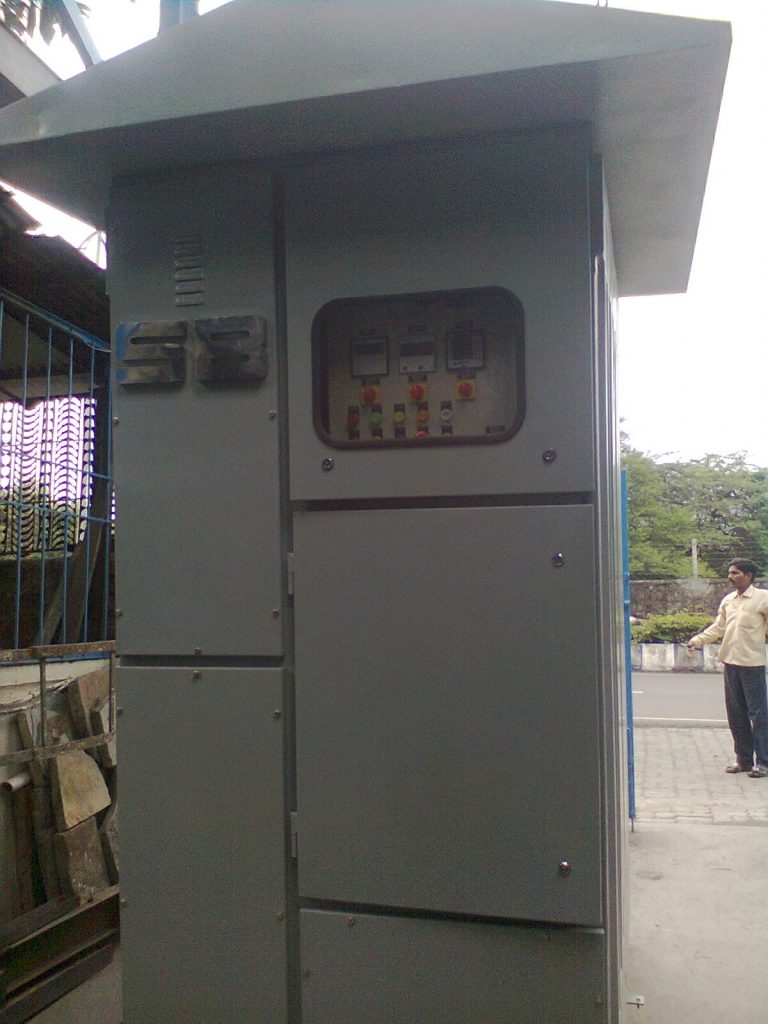

11kV Outdoor VCB panel
Safegear VCBK (11.26.3.1250)
OUTDOOR 11kV 40kA/3sec 1250A VCB SafegearSF6(11.40.1250) indoor panel. Fault level of 40kA for 3
sec. Ampere rating starting from 630A to 2500A. COPPER/ ALUMINIUM Bus bars are HT PVC sleeved and
IP protection of IP5X as per IEC 62271-200. Draw out type VCB with all standard protection and metering
with CT PT. Note it is a double bodied panel as the indoor panel is assembeld in the KIOSK. Much safer
and stronger

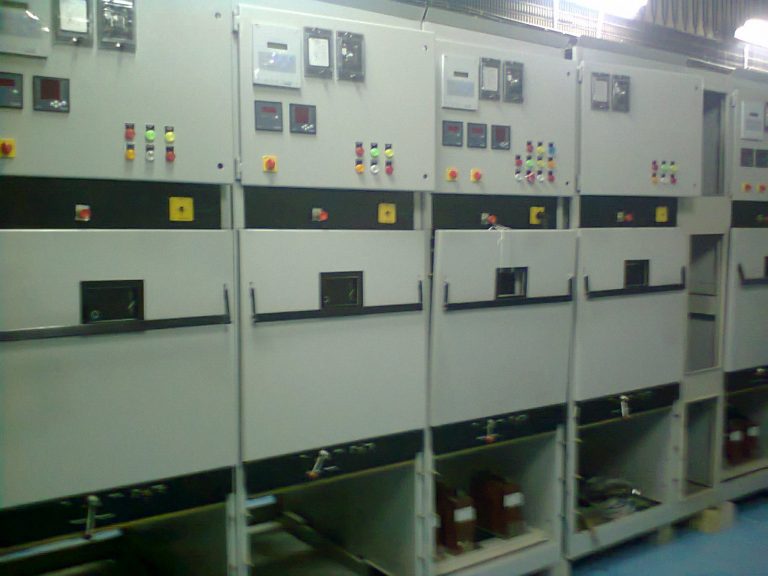

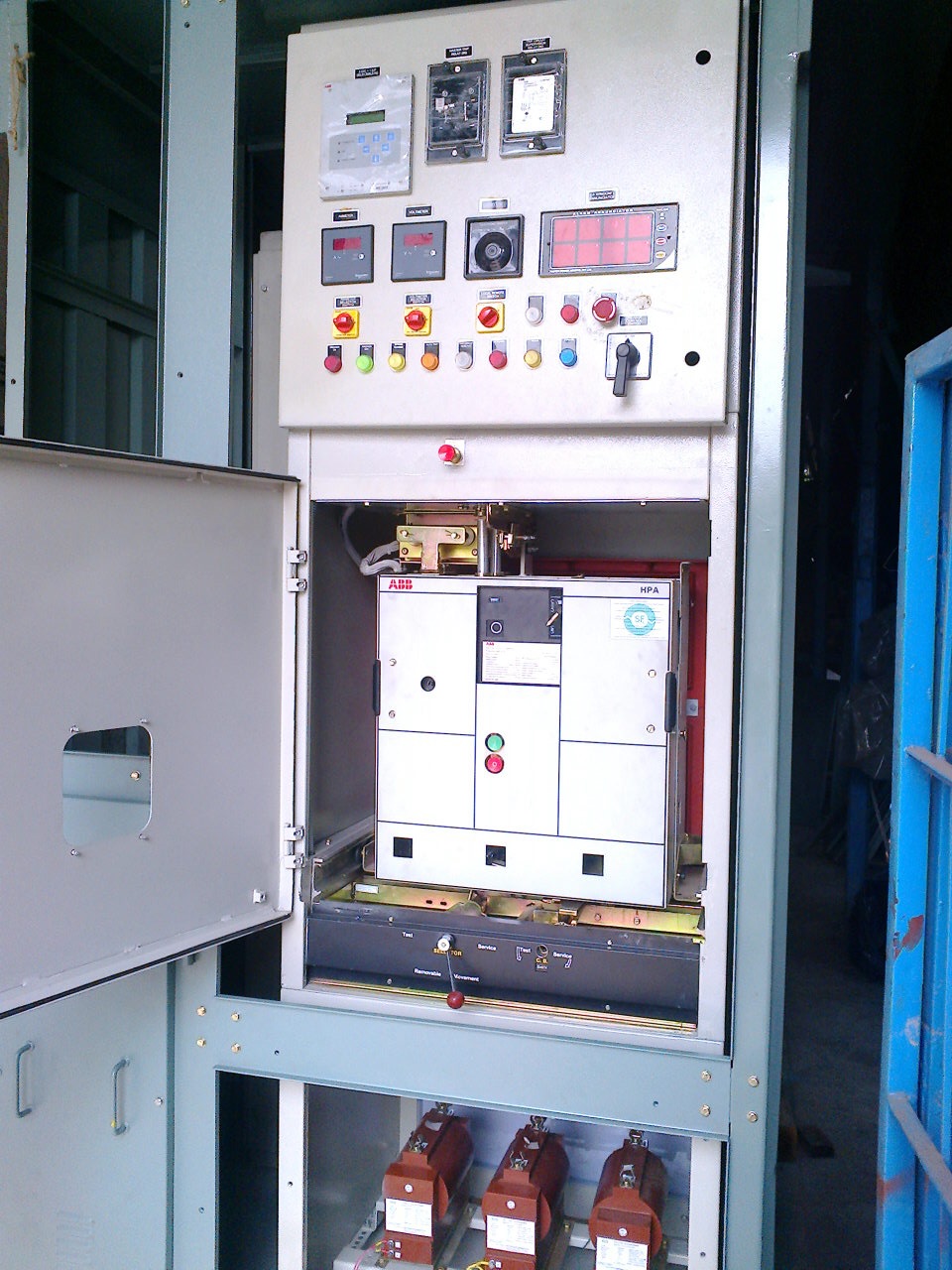

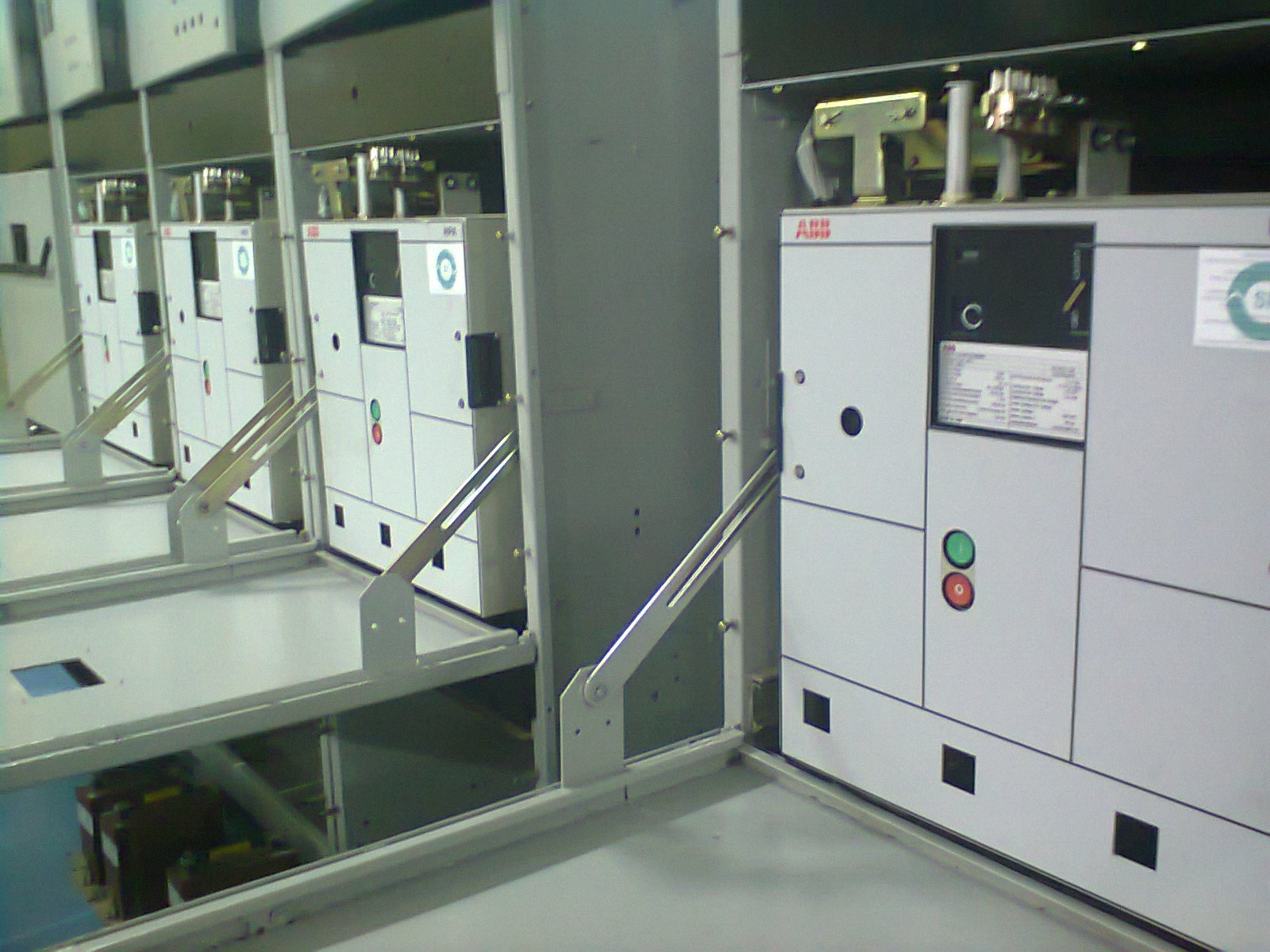

11kV SF6 breaker panel
11kV 40kA/3sec 1250A SF6 breaker SafegearSF6(11.40.1250) indoor panel. Fault level of 40kA for 3 sec. Ampere rating starting from 630A to 2000A. COPPER/ ALUMINIUM Bus bars are HT PVC sleeved and IP protection of IP4X as per IEC 62271-200. Draw out type VCB with all standard protection and metering with CT PT.

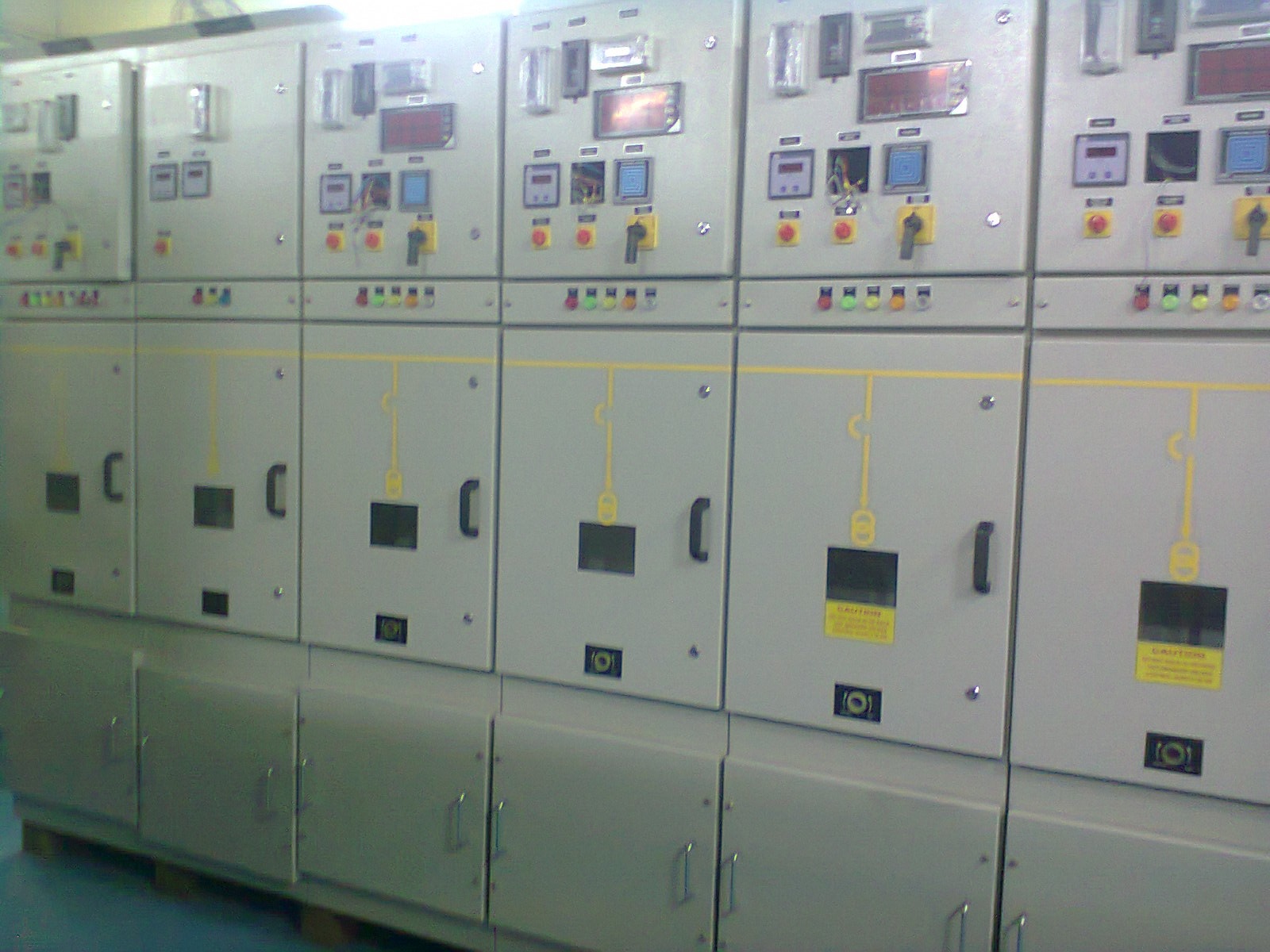

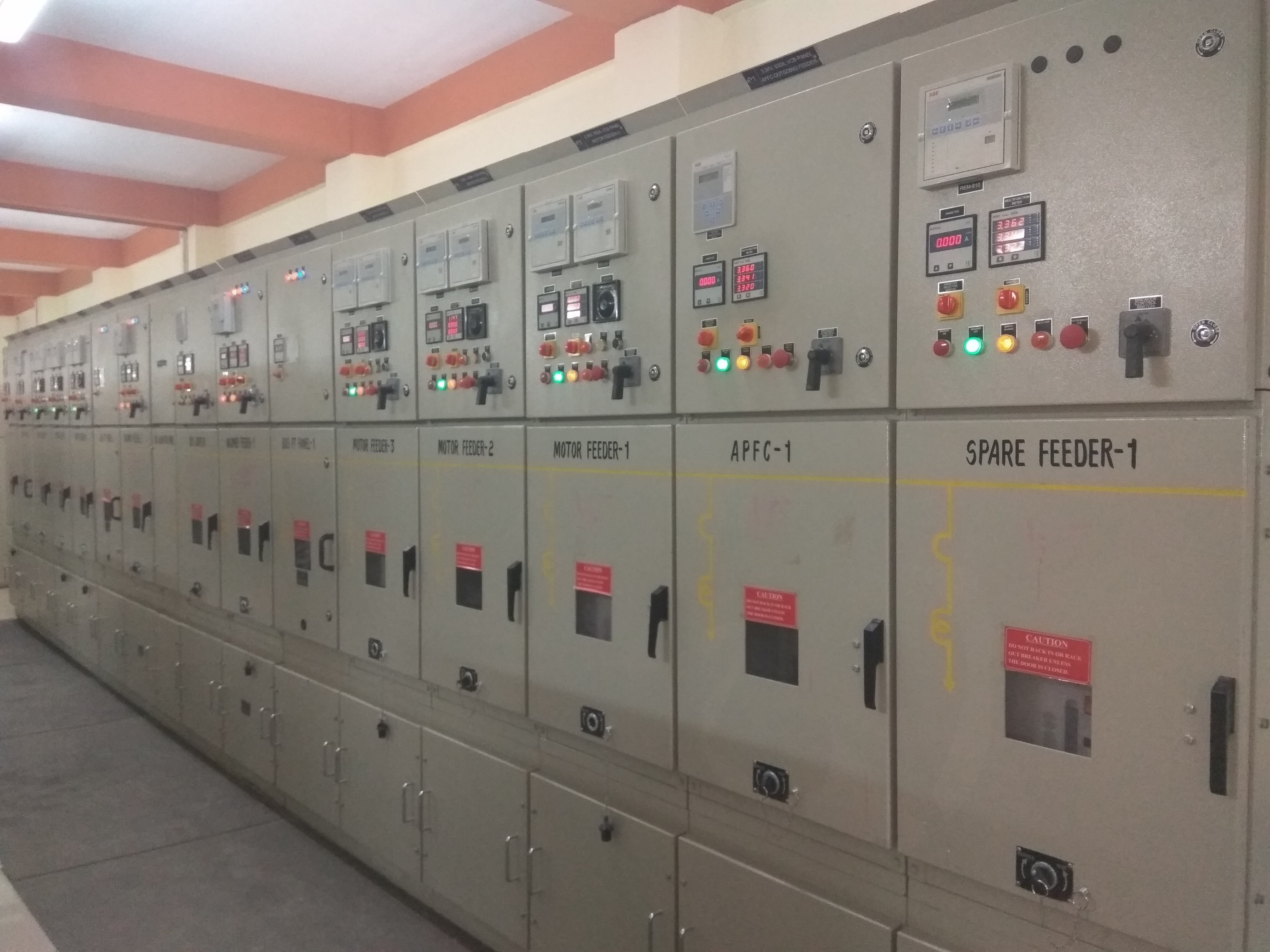

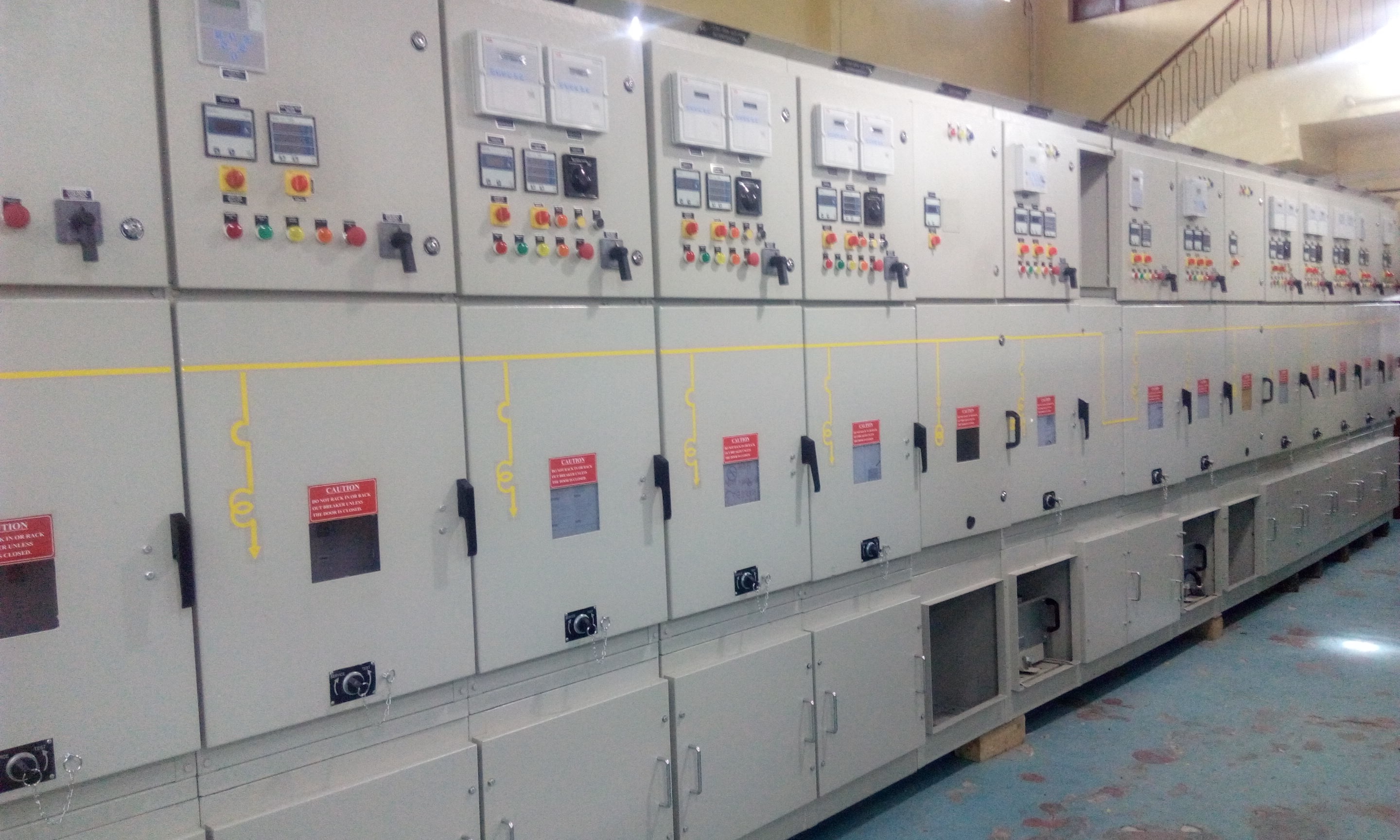

11kV VCB panel Indoor 25kA
SafegearVCB(11.26.3.1250)
OUTDOOR KIOSK 11kV 26.3kA/3sec 1250A VCB Safegear(11.26.3.1250) indoor panel. Fault level of 20kA and 26.3kA for 3 sec. Ampere rating starting from 630A to 2000A. COPPER/ ALUMINIUM Bus bars are HT PVC sleeved and IP protection of IP4X as per IEC 62271-200. Draw out type VCB with all standard protection and metering with CT PT
SafegearVCB (11.40.1250)
INDOOR 11kV 40kA/3sec 1250A VCB Safegear(11.40.1250) indoor panel. Fault level of 40kA for 3 sec. Ampere rating starting from 630A to 2500A. COPPER/ ALUMINIUM Bus bars are HT PVC sleeved and IP protection of IP4X as per IEC 62271-200. Draw out type VCB with all standard protection and metering with CT PT
OUTDOOR KIOSK 11kV 26.3kA/3sec 1250A VCB Safegear(11.26.3.1250) indoor panel. Fault level of 20kA and 26.3kA for 3 sec. Ampere rating starting from 630A to 2000A. COPPER/ ALUMINIUM Bus bars are HT PVC sleeved and IP protection of IP4X as per IEC 62271-200. Draw out type VCB with all standard protection and metering with CT PT
SafegearVCB (11.40.1250)
INDOOR 11kV 40kA/3sec 1250A VCB Safegear(11.40.1250) indoor panel. Fault level of 40kA for 3 sec. Ampere rating starting from 630A to 2500A. COPPER/ ALUMINIUM Bus bars are HT PVC sleeved and IP protection of IP4X as per IEC 62271-200. Draw out type VCB with all standard protection and metering with CT PT

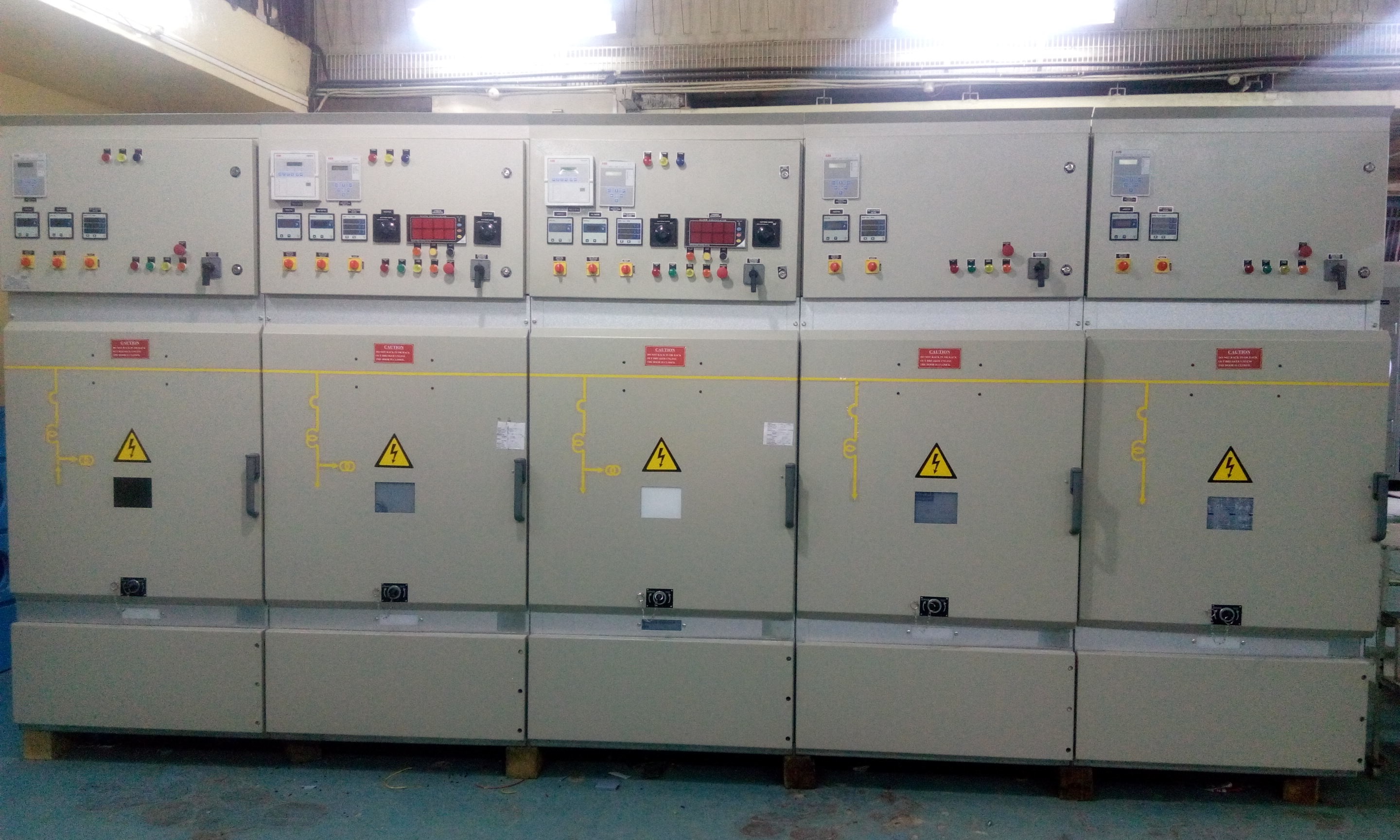

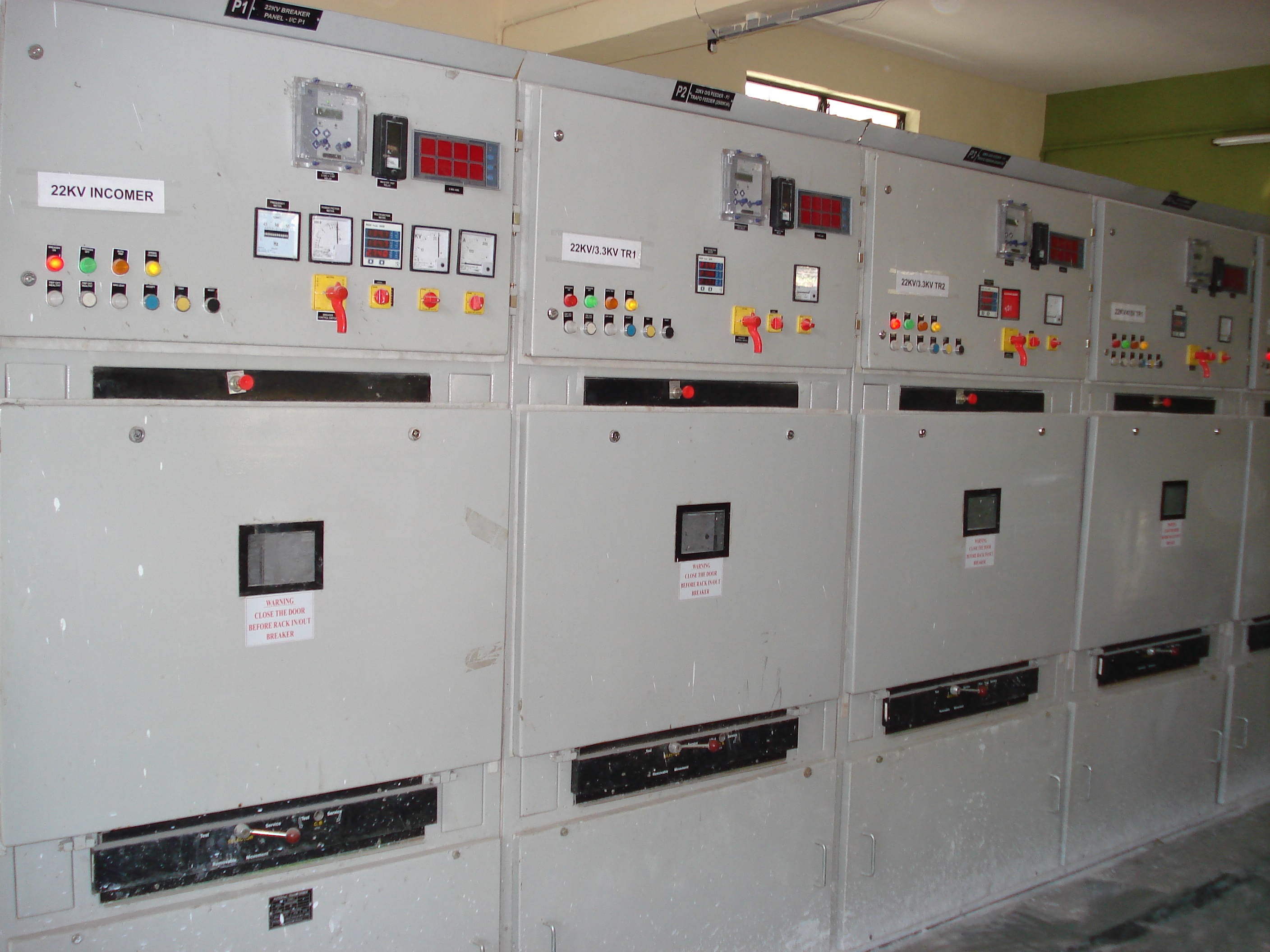

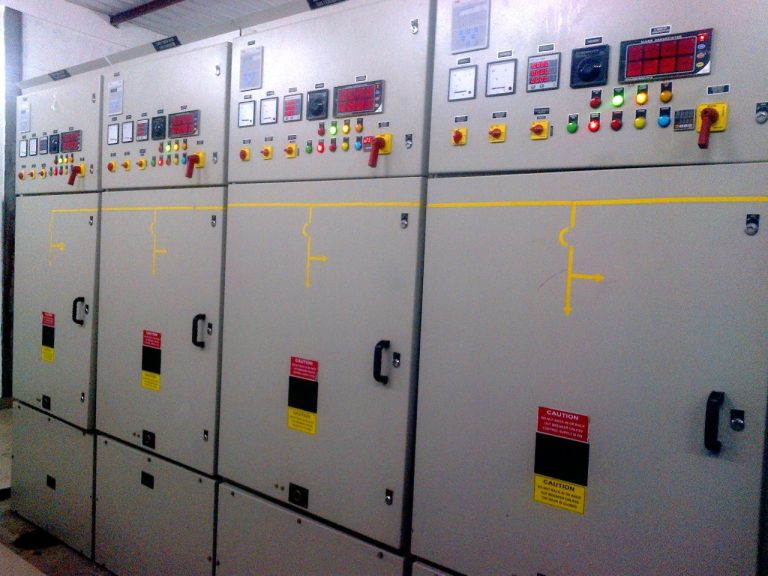

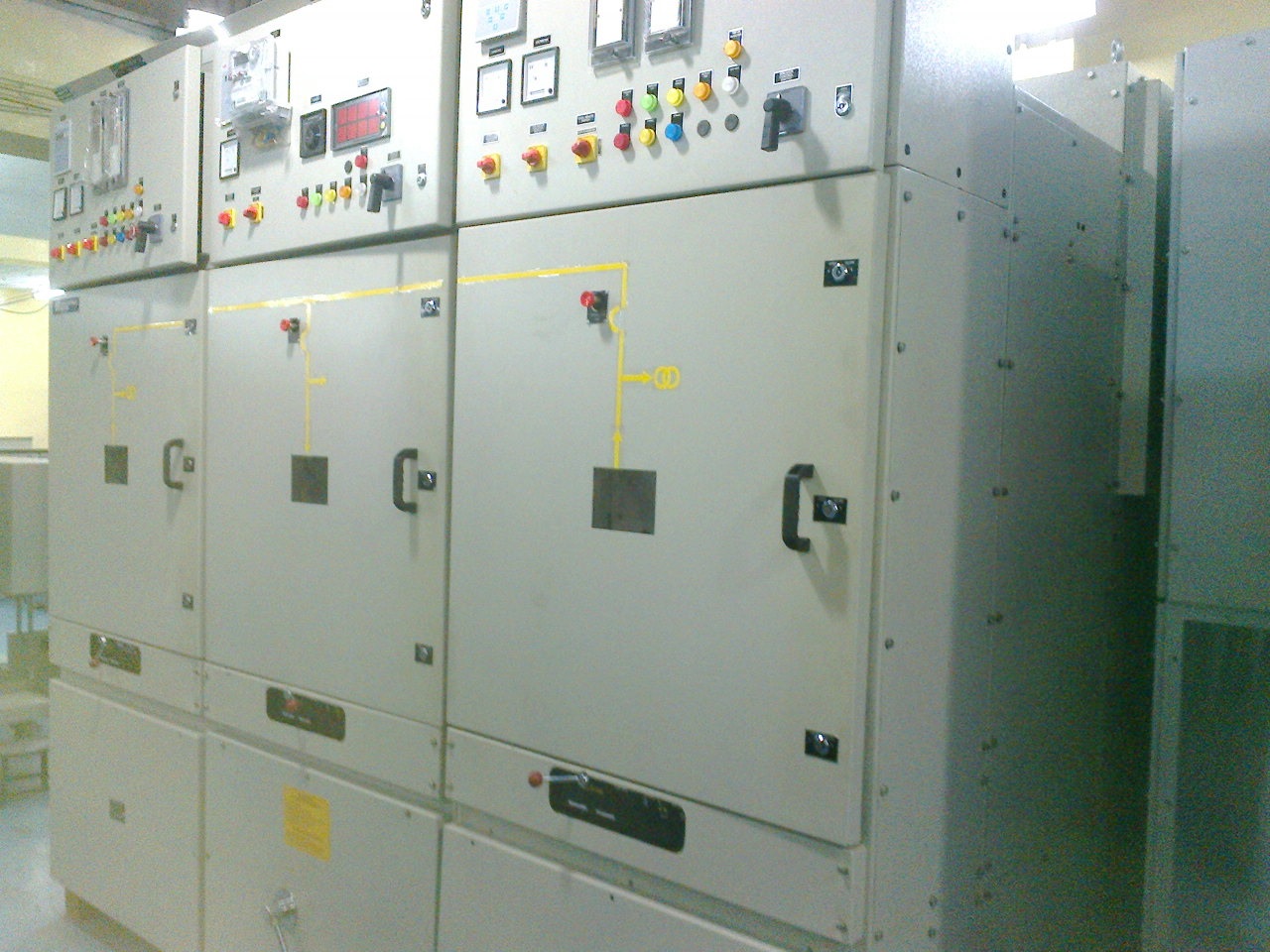

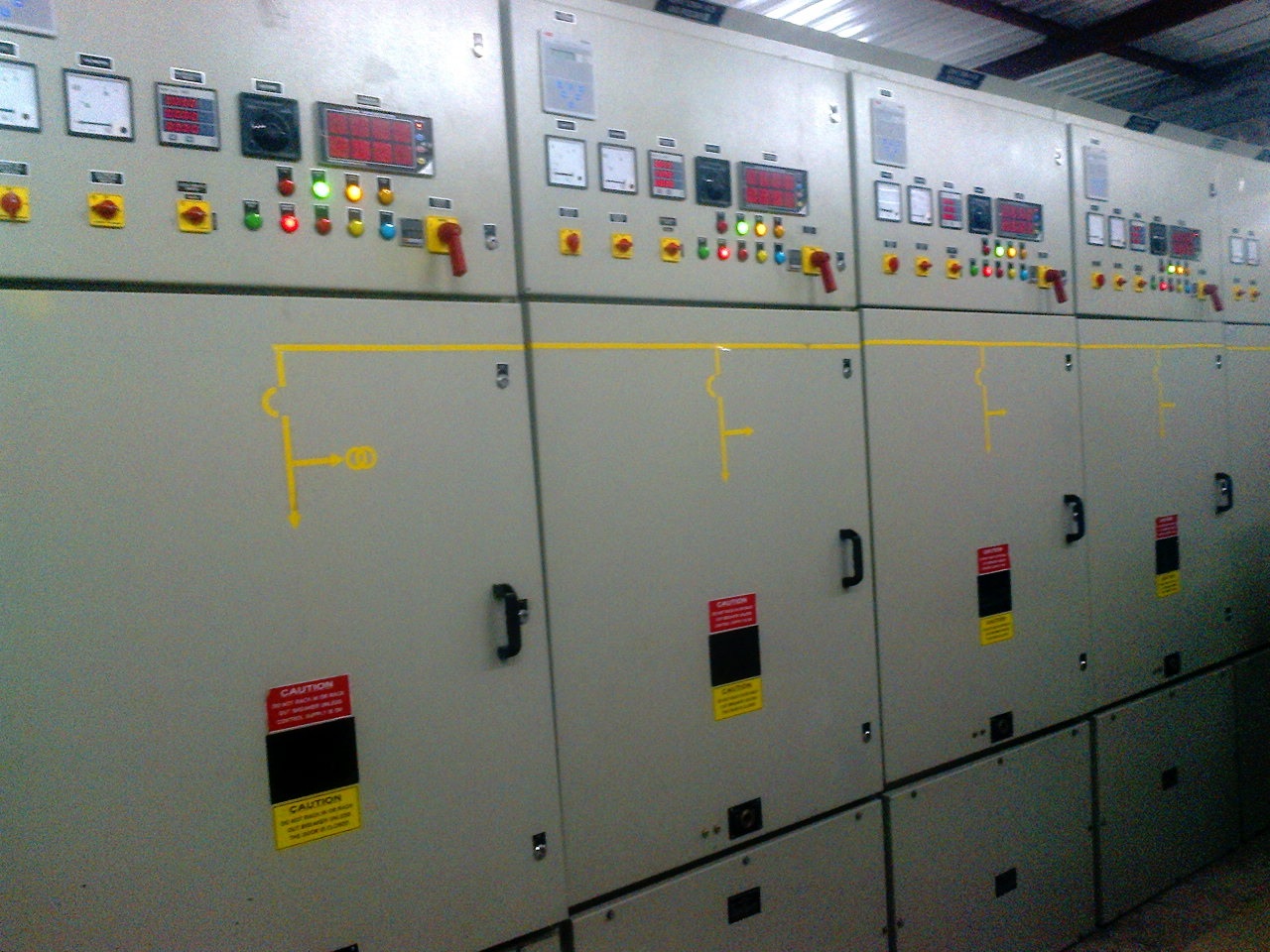

22kV and 33kV VCB panel Indoor and Outdoor
22kV & 33kV 31.5kA/3sec 1250A VCB Safegear(22.31.5.1250) & Safegear(33.31.5.1250) indoor panel. Fault level of 31.5kA for 3 sec. Ampere rating starting from 630A to 3250A. COPPER/ ALUMINIUM Bus bars are HT PVC sleeved and IP protection of IP4X as per IEC 62271-200. Draw out type VCB with all standard protection and metering with CT PT
